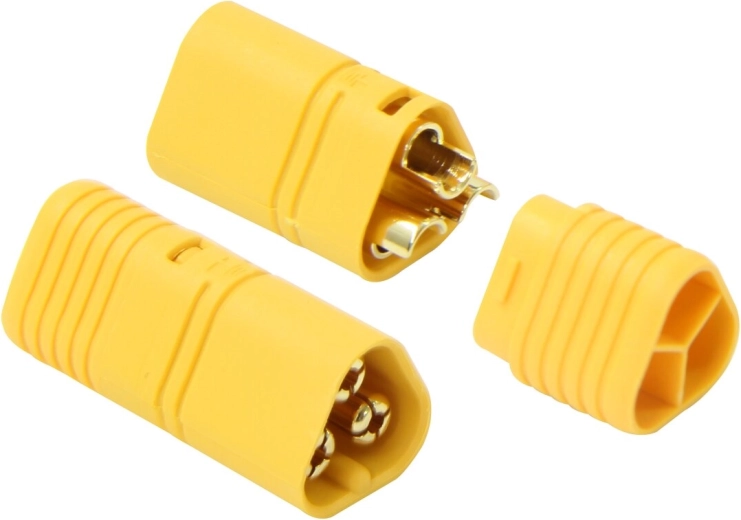

Three-pole JAMARA MT60 connector with insulating cover, gold-plated - 1 pair

3,80 €
Shipping from 3,90 €
External warehouse · At your place 13. 10.
Product code: 757537-1
Free shipping on orders over €149.00
Hassle-free returns within 30 days
Fast delivery from 3,90 €
The JAMARA MT60 three-pole connector with gold-plated contacts provides reliable power supply with low contact resistance for RC models, batteries and brushless motors. The set contains 1 plug and 1 socket with practical insulating covers that eliminate the need for heat-shrink tubing.

The gold-plated three-pole JAMARA connector is designed for a secure and reliable electrical connection in model making and RC hobbies. It is suitable for cars, boats, aircraft, helicopters, battery packs and brushless motors. The gold-plated brass contacts help minimise contact resistance and support efficient current transmission.

The durable polyamide housing withstands high temperatures, and its ergonomic design makes the connector easy to connect and disconnect. Integrated insulating covers protect the connections and eliminate the need for conventional insulation with heat-shrink tubing.

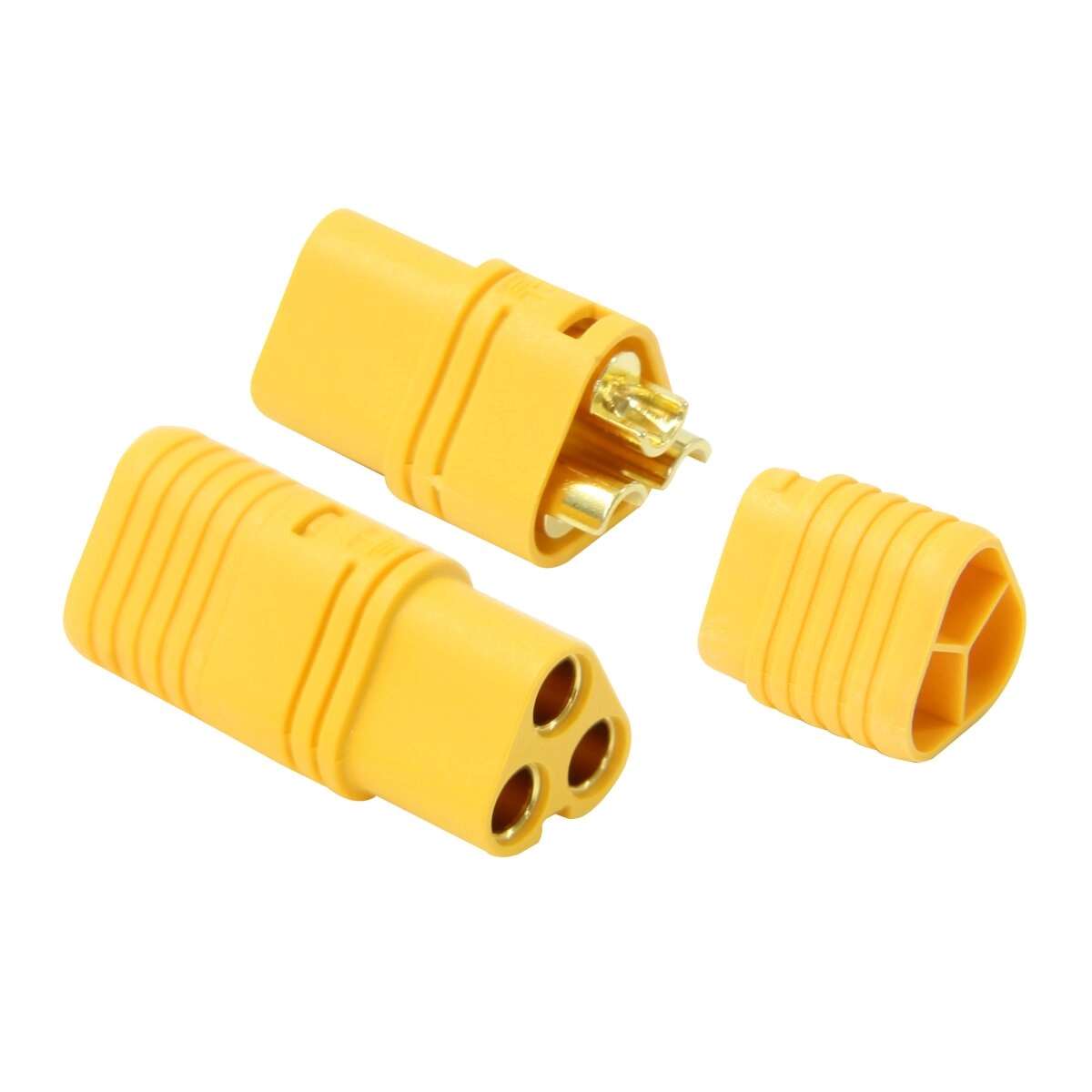

  • 1 pair: plug and socket
  • Three-pole design for three-phase connections
  • Protection against reverse polarity and a precise, secure connection
  • Solder installation onto cables with a cross-section of up to 4 mm²
  • Suitable for continuous current loads of up to 30 A

Specifications

Brand
JAMARA
Connector type
Plug and socket
Application
For DC power supply
Connector series
MT30
Typical use
Connecting batteries and accumulators
Number of poles
3
Mechanical installation
For cable assemblies
Electrical installation
Soldering
Contact finish
Gold-plated
Contact material
Brass
Rated current
30 A
Maximum short-term current
60 A
Rated resistance
0.45 mΩ
Rated voltage
500 V
Flammability class
UL94V-0
Operating temperature
-20 to 120 °C
Mechanical lifespan
1,000 cycles
Housing material
Polyamide
Maximum conductor cross-section
12 AWG / 4 mm²
Colour
Yellow
CE
Yes
